Preces kods: 60004405
Displejs NEC MultiSync V404-RPi
Minidators Raspberry Pi, izšķirtspēja 1920×1080. Spilgtums 500 cd /m2 . Pretatspīduma stikls 25%.OPS slots.Izmantošana 24/7
Ražotājs | NEC |
Ekrāns
Paneļa tehnoloģija | S-PVA |
Aktīvā ekrāna daļa [mm] | 885.6 x 498.2 |
Ekrāna izmērs (collas / cm) | 40 / 101.6 |
Ekrāna izmērs (collas) | 40 |
Ekrāna izmērs (cm) | 101.6 |
Malu attiecība | 16:9 |
Spilgtums | 500, 350 Eco |
Kontrasts | 4000:1 |
Skata leņķis [°] | 178 |
Reakcijas ātrums [ms] | 8 |
Pretatspīdums [%] | 25 |
Uzstādīšanas veids | horizontāli, vertikāli, ekrāns uz augšu. ekrāns uz leju |
Standarta izšķirtspēja | 1920 x 1080 |
Atbalstītās izšķirtspējas (Display port + HDMI) | 1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 800, 1280 x 960, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 2160, 3840 x 2160, 4096 x 2160, 640 x 480, 800 x 600 |
Sensori
Gaismas | Iebūvēts, ieprogrammējamas darbības |
Kustības | Papildfunkcija, ārējs, 4-5m uztvršanas zona, ieprogrammējamas darbības |
Temperatūras | Iebūvēts, 3 sensori, ieprogrammējamas darbības |
NFC | Iebūvēts, darbības zona 2cm, nepieciešama bemaksas NEC Android App |
Savienojumi
RGB (Analogs) | D-Sub15 |
Digitāls | 2 x HDMI (ar HDCP), 1 x DVI-D (ar HDCP), 2 x DisplayPort (ar HDCP) |
Video | 1 x DVI-D (ar HDCP), 2 x DisplayPort (ar HDCP), 2 x HDMI (ar HDCP) |
Audio | 1 x 3.5 mm, 2 x DisplayPort, 2 x HDMI |
Mikrofons | 2 x 3.5 mm |
Kontrole | 1 x LAN 100Mbit, 1 x pultsl (3.5 mm), 1 x RS232 |
LAN | LAN 100Mbit |
USB | 1 x USB 2.0 (MediaPlayer), 1 x USB 2.0 (Service), 1 x USB Type-B (Upstream), 2 x USB 2.0 (Compute Module, 1 x 5V/2A powered) |
Tehniskie parametri
Energoefektivitātes klase | B |
Elektroenerģijas patēriņš [W] | 95, 75 Eco |
Darba vides temperatūra [°C] | 0 līdz +40 |
Darba vides gaisa mitrums [%] | 20 līdz 80 |
Izmērs (W x H x D) [mm] | 918 x 530.6 x 54.7 |
Svars [kg] | 14.5 |
Apmales biezums [mm] | 13.2 |
VESA Stiprinājums [mm] | 300×300 |
Slodze | 24/7 |
Aizsardzība | IP 5X (priekša), IP 2X (aizmugure) |
Iebūvēts
Minidators | CPU: Quad Core 64-bit ARM Cortex A53, Graphics: 1.2GPixel / sec OpenGL ES 2.0 3D, Hardware video encode / decode (MPEG2, MPEG4, H.264, VC-1 up to 1080p60), Memory: 16GByte on-board eMMC, OS: Standard: Raspbian Jessie with PIXEL, RAM: 1GByte LPDDR2 SDRAM, Realtime clock, VideoCore IV GPU, Watchdog Timer |
Garantija
Garantija | 3 gadi |
Piegādes komplektācija
Piegādes komplektācija | DVI-D vads, pults, strāvas vads |
Papildus komplektācija
Papildus komplektācija | OPS, kāja (ST-401), sienas stiprinājumi (PDW S 32-55 L un P, PD02W T M L, PD03W T M P), skaļruņi (SP-TF1), statīvs (PDMHM-L) |
Description
The smartest choice for digital signage
For compelling Digital Signage results, NEC’s MultiSync® V404-RPi combines professional display capabilities with the smartness of Raspberry Pi computing at the lowest operational investment.

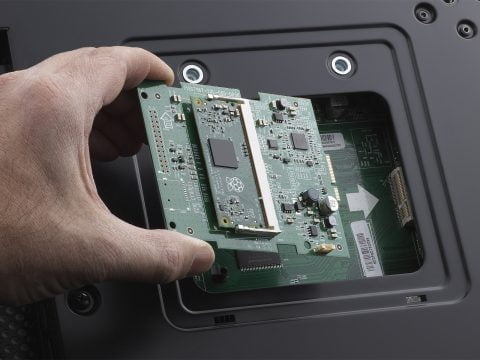

Pre-installed into the 40” signage display, the NEC Edition of the Raspberry Pi 3 Compute Module boosts the display performance to suit any visual application and opens a gateway to the IoT. The NEC Edition tops the standard Raspberry Pi performance with extended memory capabilities and intelligent digital signage support such as the Watch Dog Timer and Real Time Clock for scheduling. Convincing visibility under common light conditions is guaranteed thanks to the combination of 500 cd/m² brightness output and an anti-glare surface. The modern and slim design is the perfect fit to complement the surrounding architecture as well as for integration into any application and environment.
The MultiSync® V404-RPi provides the smartest combination of embedded computing power with professional digital signage displays for shorter viewing distances or big messages in retail environments, leisure and museum applications, quick service restaurants, for corporate information and all other public spaces.
Benefits
- Designed for professional Digital Signage – the NEC Edition features an extended onboard memory of 16 GB, a Watch Dog Timer and a Real Time Clock as well as pre-loaded licences for video decoding to meet the particular demands of professional signage applications
- Powerful possibilities – the Quad Core 1.2 GHz processor provides amazing performance for crisp Full HD playback with an unrivalled price-performance ratio.
- Unlimited versatility – supporting a broad range of operating systems, this open platform offers high flexibility for digital signage software providers and system integrators.
- Reliable colour reproduction – due to 10-bit colour performance, extreme viewing angles and hardware calibratable LUT, viewers benefit from consistently accurate image rendering.
- Ease of use and operation – Smart installation, operation and maintenance functionality ensures accurate performance over the entire lifetime of the display saving time, effort and resources.
- Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
- Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
- Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet Administrator 2 software tool.
