CreatBot-Peek300 - CreatBot-PEEK-300-CreatBot-PEEK-300

Preces kods: CreatBot PEEK-300

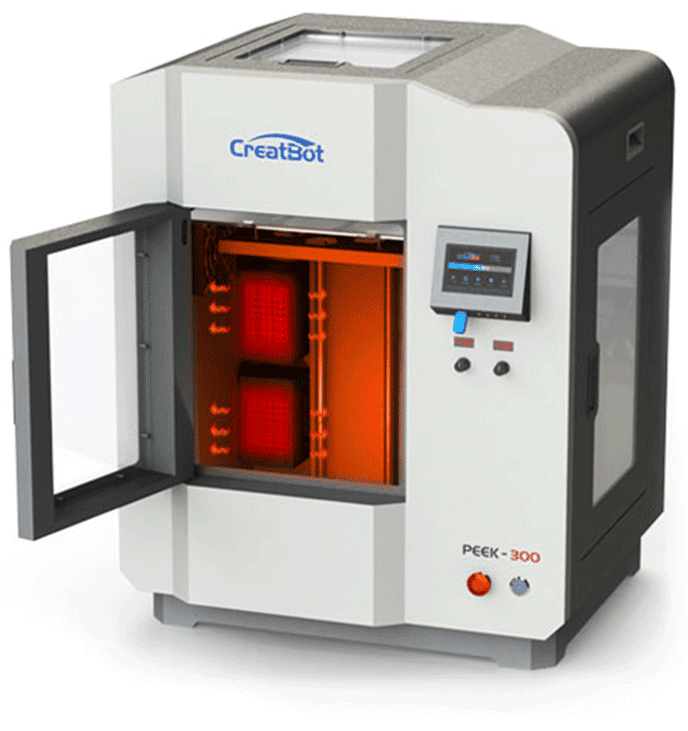

3D printeris CreatBot PEEK-300

€16335.00 (Cena ar PVN)

(Atzīmējiet 2-4 preces no kategorijas)

The CreatBot PEEK-300 is a new industrial grade 3D Printer that puts full focus on high performance materials such as PEEK and PEI. The printer is designed for high reliability and economical 3D printing of high-performance functional materials.

Features

  • Large build volume of 300x300x400
  • Dual extruder
  • Resume print if power fails
  • Pause print if filament runs out
  • Prints up to 500°C
  • Heated build plate 200°C
  • Heated build chamber 120°C
  • Water cooled system
  • Fully enclosed chamber
  • Automatic and manual bed levelling
  • 4,3″ touch screen
  • HEPA air filtration

The CreatBot PEEK-300 is a new industrial grade 3D Printer that puts full focus on high performance materials such as PEEK and PEI.The printer is designed for high reliability and economical 3D printing of high-performance functional materials.

Large print space

The PEEK-300 has an impressive build space of 300x300x400 mm. To be able to print PEEK in this size is very good.

Dual extruders

The PEEK-300 extruders include an intelligent cooling system. This ensures that the filament is feeding at the optimal temperature all the time. The height adjustable nozzles allow you to align your two nozzles very quick and easy. Perfect when you want to 3D print with support, varied materials or just two colors. All CreatBots from 3D Prima come with dual extruders as standard.

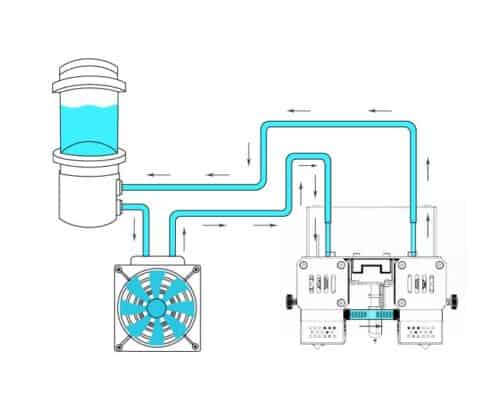

Liquid cooling

The cooling system is one of the most important components in a printer, and even more so in a printer that can reach high temperatures. PEEK-300 has a newly developed liquid cooling system makes the water circulate withing the hot-end and keeps it at optimal temperature.

Air pump cooling

To aid the liquid cooling system the PEEK-300 also have air pump cooling system. The function that sets this printer apart from others is that it takes cool air from the outside, rather than just use the hot air inside the printer.

CreatBot-Peek300 - 7606_FDM_Printer_Creatbot__Peek-300_005

Filament detection system

If you should run out of filament during a 3D print, don’t worry. The 3D printer will go into pause mode and let you change the filament – then you just hit resume, easy!

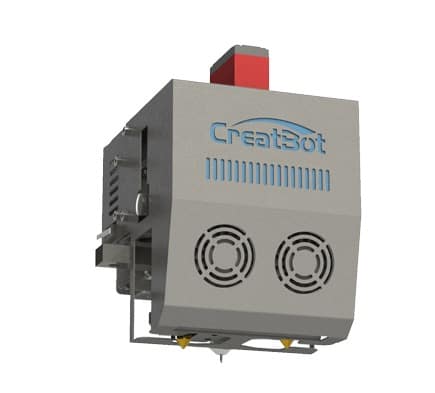

High temperature 3D prints

The nozzles can operate in temperatures up to 500 ° C. This means that you can use a wide range of different filaments, including PEEK

CreatBot-Peek300 - 7606_FDM_Printer_Creatbot__Peek-300_001

Continuos 3D printing

If you should have an unexpected power loss the PEEK-300 remembers the last known position, stores it, lowers and retracts the filament. When the power comes back on you can continue to 3D print.

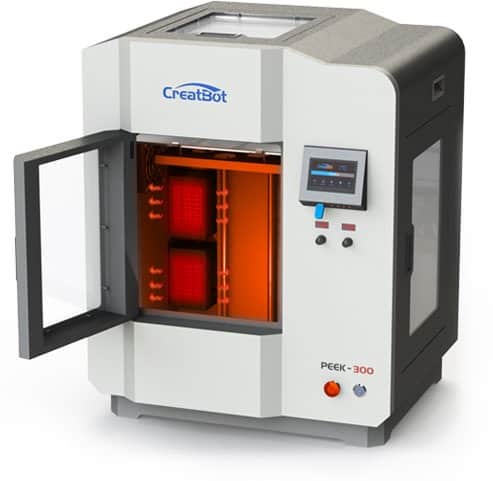

Enclosed and heated build area

The build-chamber on the PEEK-300 can be heated to 120°C. Thanks to this function the printer can keep a constant temperature and means that you run a much lesser risk of cracks and warping. That is a problem that you often encounter with ABS for instance on printers without heated build chamber.

CreatBot-Peek300 - 7606_FDM_Printer_Creatbot__Peek-300_003

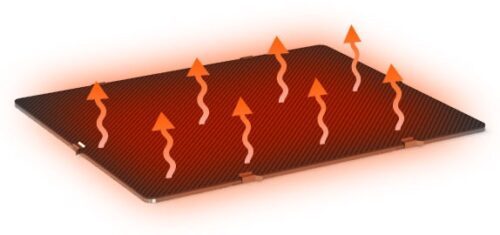

Heated build platform

The build platform on the PEEK-300 can reach 200°C. This is essential if you want to print materials like PEEK, PEKK and similar materials.

CreatBot-Peek300 - 7606_FDM_Printer_Creatbot__Peek-300_002

Print with precision and speed

With the PEEK-300, CreatBot has taken everything a step further when it comes to speed, precision and reliability. Resolution up to 0,04 mm and a print speed up to 120 mm/s (40-60 mm/s optimal speed). Combine this and a powerful direct drive setup, and you have a printer that will perform at its best every time you use it.

All enclosed build space

On the CreatBot PEEK-300 you have a totally enclosed build space which prevents large 3D prints from being cracked or warped.

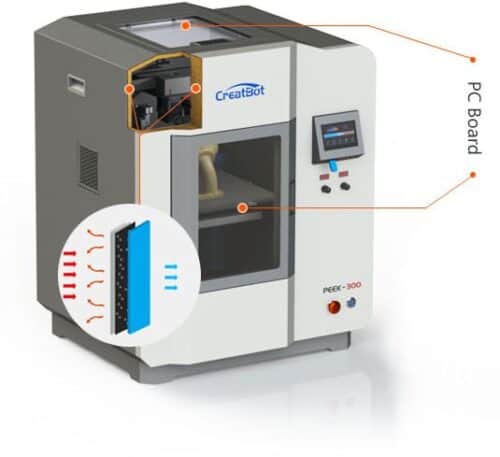

Triple Heat Isolation

Triple heat isolation is made of double insulation chamber, advanced insulation materials and vacuum double PC boards. It is guarantee of ultra performance and safety.

CreatBot-Peek300 - 7606_FDM_Printer_Creatbot__Peek-300_004

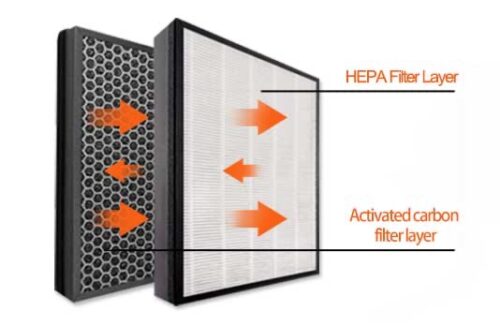

HEPA Air filtration

The air filter system can adsorb impurities and gases that generated by printing special filament, more safe and environmental protection, which is more suitable for house, school, office space.

CreatBot-Peek300 - 7606_FDM_Printer_Creatbot__Peek-300_006

Technical Details
Usable Nozzle Type MK8
Usable Filament Diameter 1.75 mm
Max Nozzle Temperature 500 ºC
Open Filament System Yes
Extruder Type Direct drive
Printing Speed Best 60 mm/s
Build Area 300 mm x 300 mm x 400 mm
Dual Build Area 300 mm x 300 mm x 400 mm
Build Plate Temp Max 200 ºC
Build Plate Surface carbon fiber sheet, removable
Build Plate Material glass
Build Plate Attachment fixed
Build Plate Leveling System BL-Touch
Build Chamber During Process Open or Closed
Build Chamber Heated Yes, max 120°C
Filament Chamber Closed Yes
Extruder Number Of 2
Extruder Construction Type Dual Dual-head with electronic lifting system
Installation Space / Requirements
Total Mass Overall Dimensions 650 mm x 600 mm x 750 mm
Total Weight 100 kg
Ambient Operating Temperature 15°C – 32°C
Max Power Consumption 4600 W
Voltage AC: 200 V – 240 V, 20 A (50-60 Hz)
Equipment
Emergency Shutdown Yes
Hepa Filter Yes
Filament Runout Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes
Camera Yes
Connection
USB Port Yes
WLAN No
Accuracy
Layer Height 0.04 – 0.5 mm
Resolution 0.04 mm

Video

CreatBot 3D Printer PEEK-300
