3D printeris Prusa Pro HT90

Get the most out of your materials

The HT90 is engineered to maximize the potential of materials like ABS, ASA, PA, PCCF, Flex, and more. Its 90 °C heated chamber provides unparalleled layer adhesion and print quality, enabling easy production of large objects without warping or layer delamination. The innovative servo flap redirects airflow to precise areas of the model within milliseconds, allowing the HT90 to print flawless overhangs with minimal supports without overcooling the printed object.

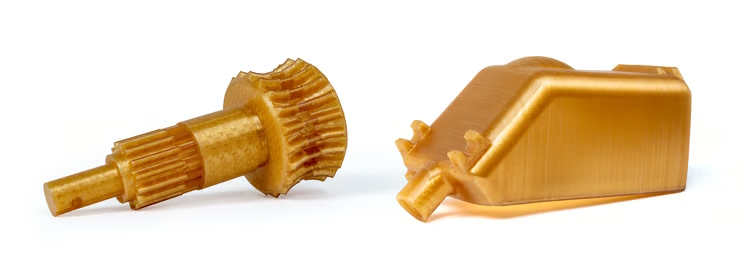

The high-temperature print head, high-performance heatbed, and actively heated chamber make the HT90 the most affordable 3D printer capable of handling high-end materials. Print small-to-mid-sized objects from such filaments as PEEK, PEKK, PPS, PSU, PES, and even PEI (Ultem), a material extensively used in the aerospace industry.

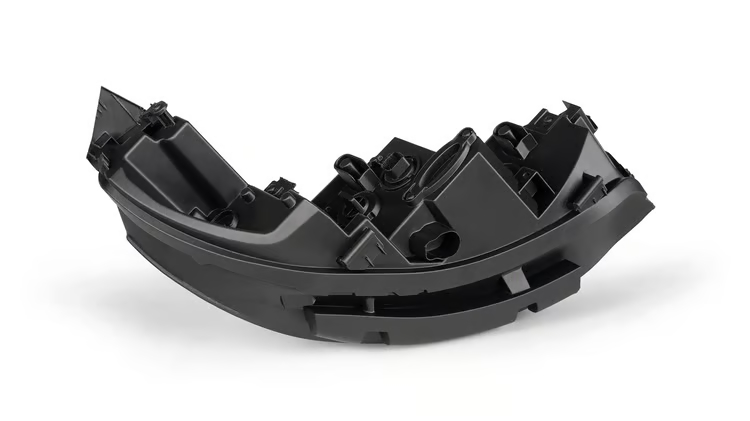

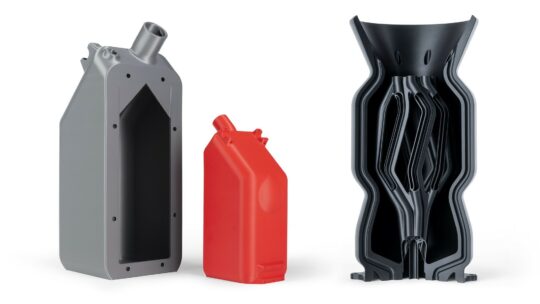

Thanks to its ability to handle a vast array of materials, the Prusa PRO HT90 is the go-to choice for many different industries. Print engine parts and coolers, medical implants and functional parts of machinery, valves, pipes, chemically-resistant components, durable heat- and cold-resistant parts and much more. No project is too demanding for the HT90.

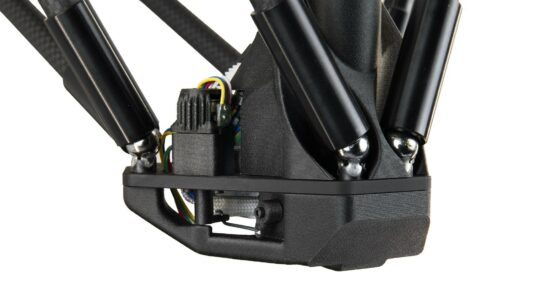

The unique air management system is designed for real-time airflow control and optimal print quality with all materials. The print fan is on the side of the printer, forcing air through a tube directly into the lightweight print head, while the high-speed flap redirects its flow within milliseconds, faster than any normal cooling fan can do. This enables vastly improved printing of overhangs while the layers in the rest of the print do not suffer from overcooling.

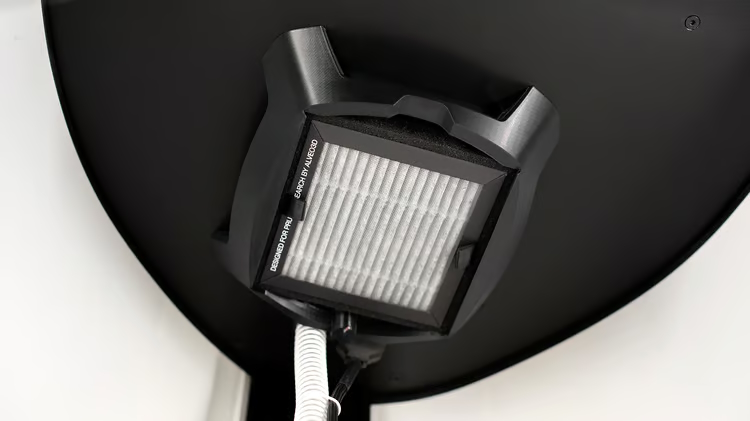

Additionally, a closed-loop air recirculation system with a HEPA filter keeps the chamber free of ultra-fine particles, while an automatic intake flap manages temperatures for materials like PLA and PETG, so you can print them with the chamber closed. The key components are placed outside the heated chamber, prolonging their lifespan.

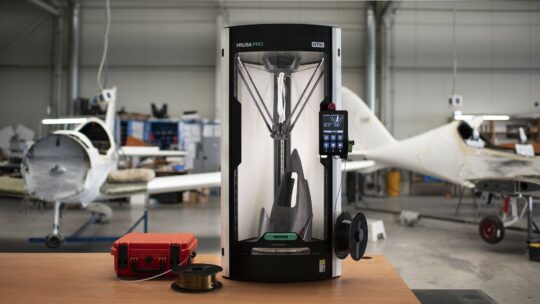

Achieve unparalleled precision with the Prusa PRO HT90! We have tuned the print profiles so that you can design precise parts and work with great accuracy. The print volume is a full cylinder with a 300mm diameter and 400 mm tall Z-axis. The printer has a small footprint that is further enhanced by a vertically sliding door to save more space.

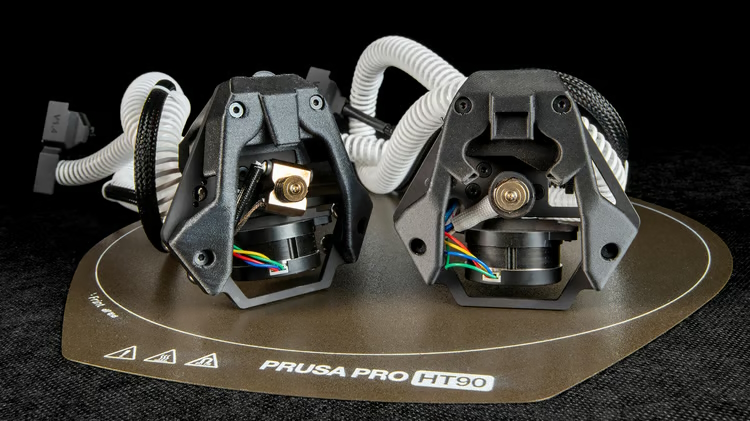

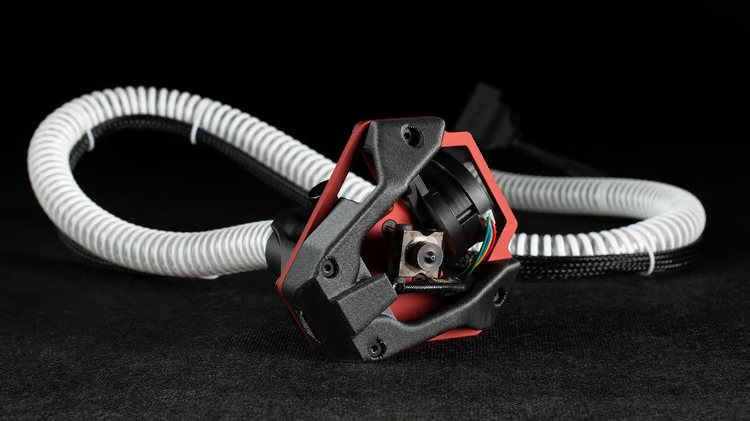

The print head is held in place using magnets. Simply detach it from the arms, disconnect the cable from the top of the printer and replace it with a different model. The High-Flow Print Head with a quick-swap 0.4mm Revo nozzle is the perfect choice for rapid prototyping with materials up to 300 °C. In contrast, the High-Temp head with an abrasive-resistant quick-swap 0.6mm Revo nozzle reaches up to 500 °C and enables printing with materials such as PEEK, PEKK, or PEI (Ultem). Both print heads are included with the HT90 and the hardware is compatible with all Revo nozzles with diameters from 0.25 – 0.8 mm.

The printer’s actively heated chamber with a closed HEPA and carbon filter recirculation loop can reach up to 90 °C, providing an optimal environment for even the most demanding materials. Print large robust objects from ABS/ASA without negative side effects, such as warping or layer separation, use PLA for quick prototyping, and create durable objects from PEEK or PEI.

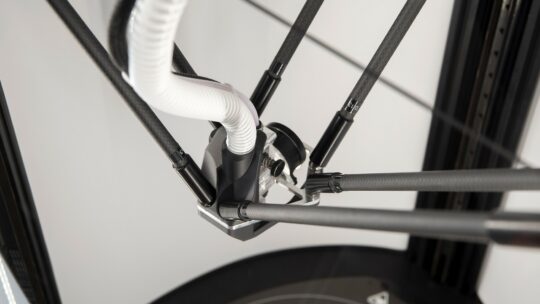

The HT90 delivers smooth, dimensionally precise prints without typical artifacts present on CoreXY or cartesian 3D printers. This is because the movement of the direct-drive extruder is controlled by a coordinated shift of three lightweight arms, while the printed objects remain stationary. Equipped with Klipper firmware and Input Shaper technology, the HT90 achieves ultra-fast speeds while maintaining top print quality across the entire cylindrical print area.

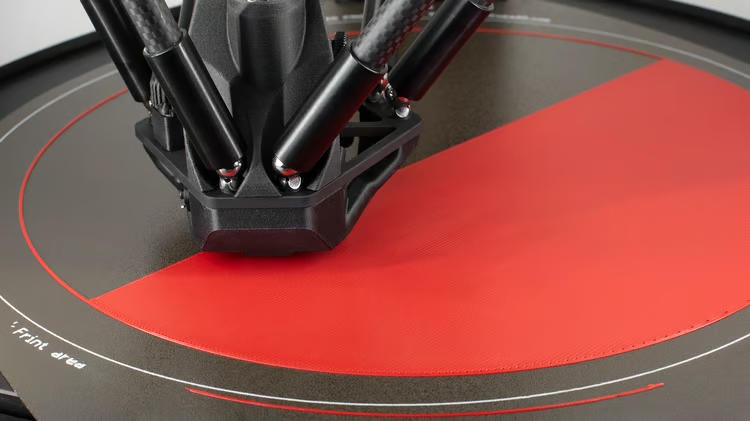

Three high-precision Loadcell sensors measure the distance between the nozzle and the print sheet with exceptional accuracy. This enables the printer to automatically achieve an absolutely pristine first layer, no matter which print surface you choose, without any need for manual adjustment.

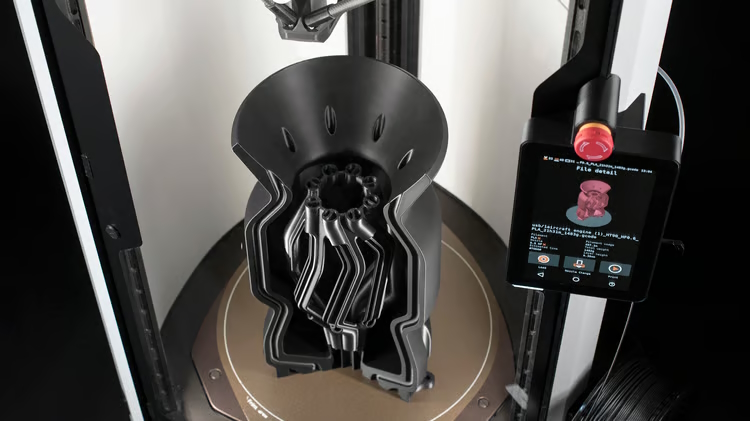

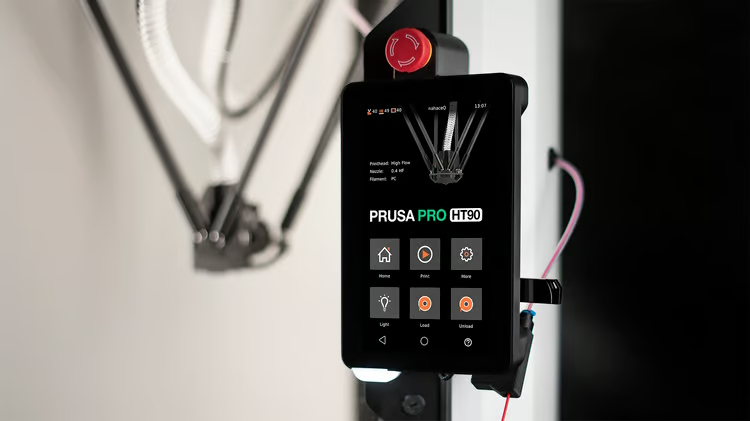

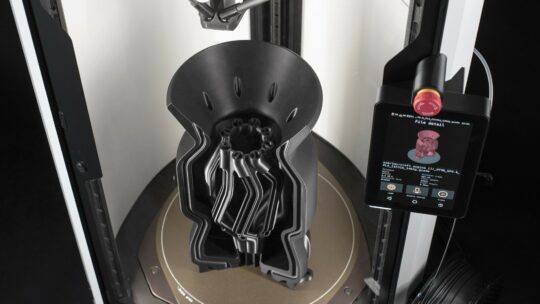

Once you unpack the HT90, you can start printing in mere minutes. The entire preparation process is fast and accompanied by easy-to-follow instructions. Everything is controlled using a large 7’’ touchscreen. Finish the automatic calibration, load a filament of your choice, and start printing!

We understand the importance of security in industrial applications. While the HT90 offers a comprehensive remote print management system and surveillance, the printer is fully prepared for a completely offline operation. You can even disconnect the Wi-Fi module from the printer. We do not collect information about your prints or your printer’s surroundings. No matter whether you’re developing a new-generation space shuttle or just printing tools for your workshop, no organization should be interested in this information.

You can access two fully-featured remote print management systems depending on your requirements. The HT90 offers both local and remote management modes – in the local mode, the printer can be reached only from the local area networks, but you can also add it into Prusa Connect, our secure remote print management system, so you can access it from anywhere. Furthermore, you can take advantage of the built-in camera for print monitoring and chamber lighting. Attaching an external USB camera is also possible.
