Product code: 60003905

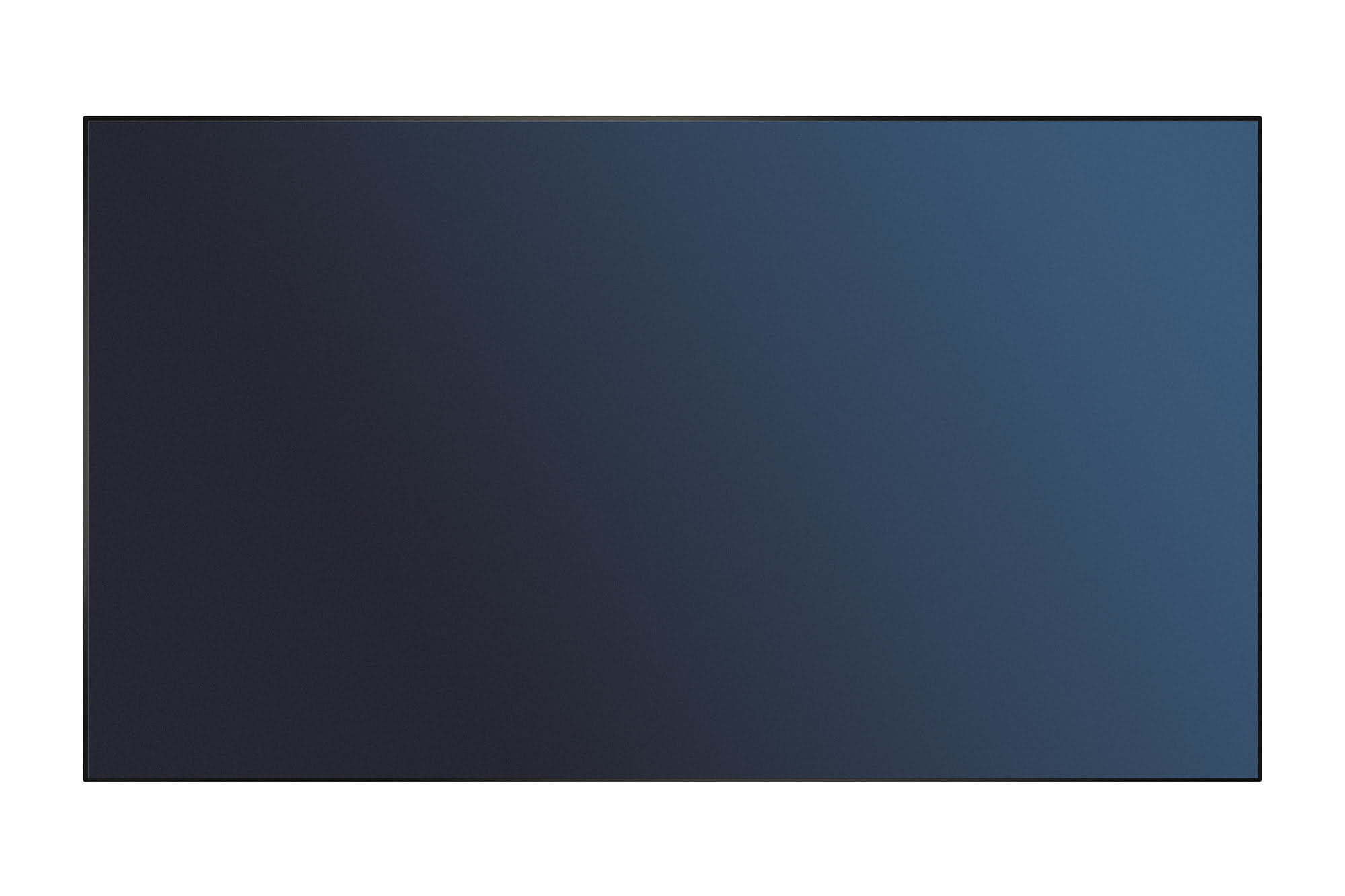

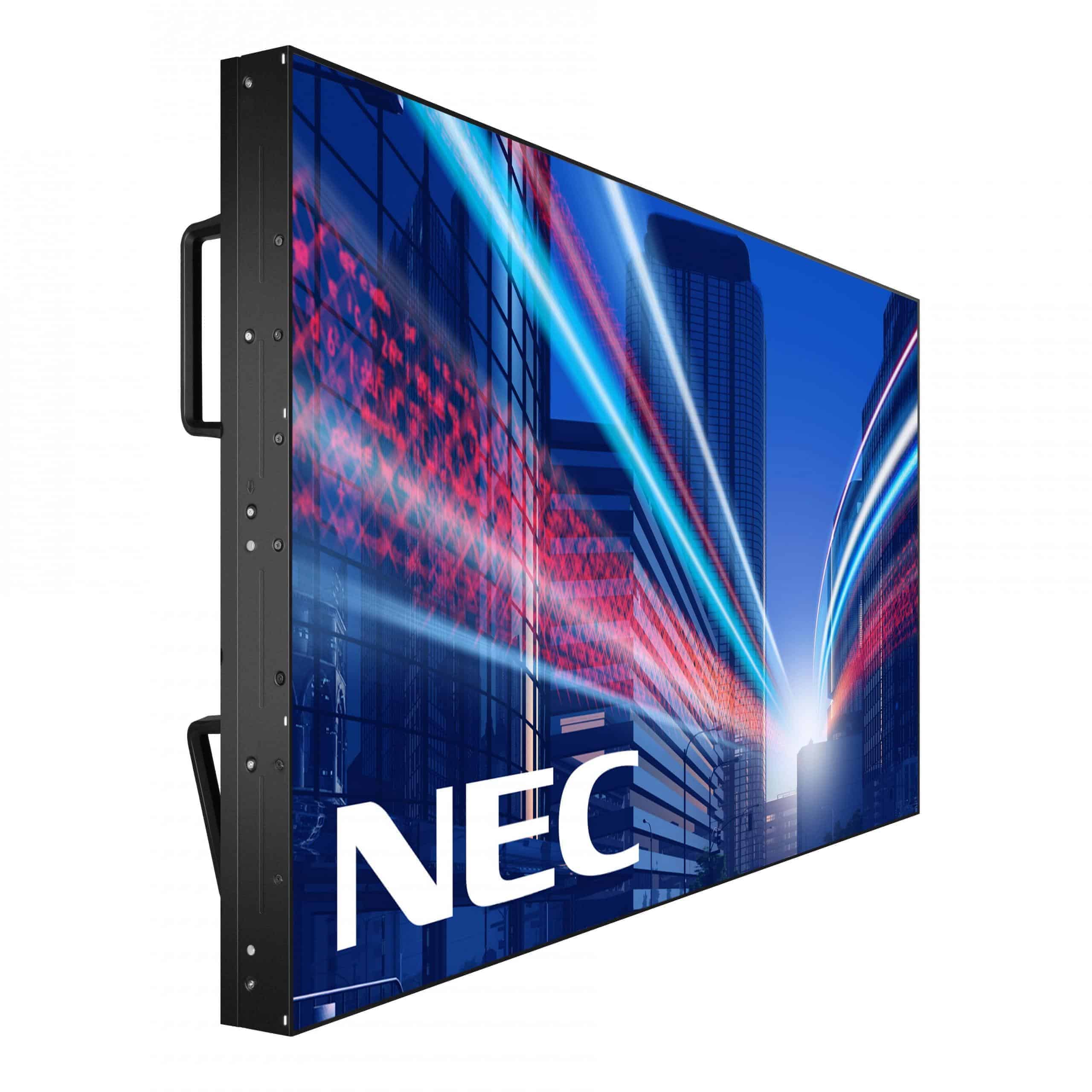

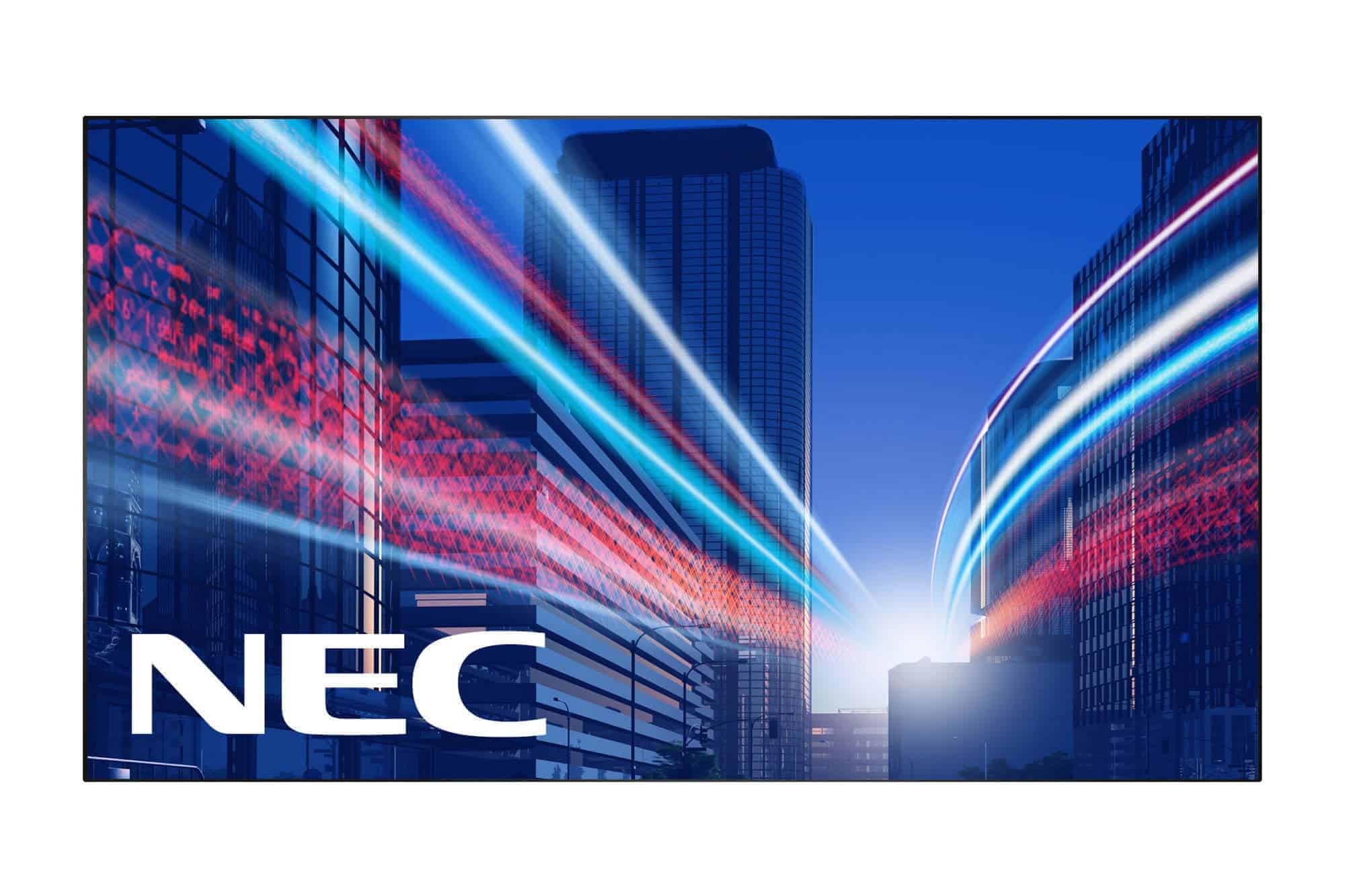

Display NEC MultiSync X555UNS
55″ Technology S-PVA. Resolution 1920×1080. Brightness 700 cd /m2 . Haze level 25%.OPS slot. CM slot. Beazel 3,5mm. Operating hours 24/7
|Active Screen Area (W x H) [mm]||1,210 x 680|
|Screen Size [inch/cm]||55 / 139|
|Ekrāna izmērs (collas)||55|
|Viewing Angle [°]||178|
|Response Time (typ.) [ms]||12|
|Haze Level [%]||44|

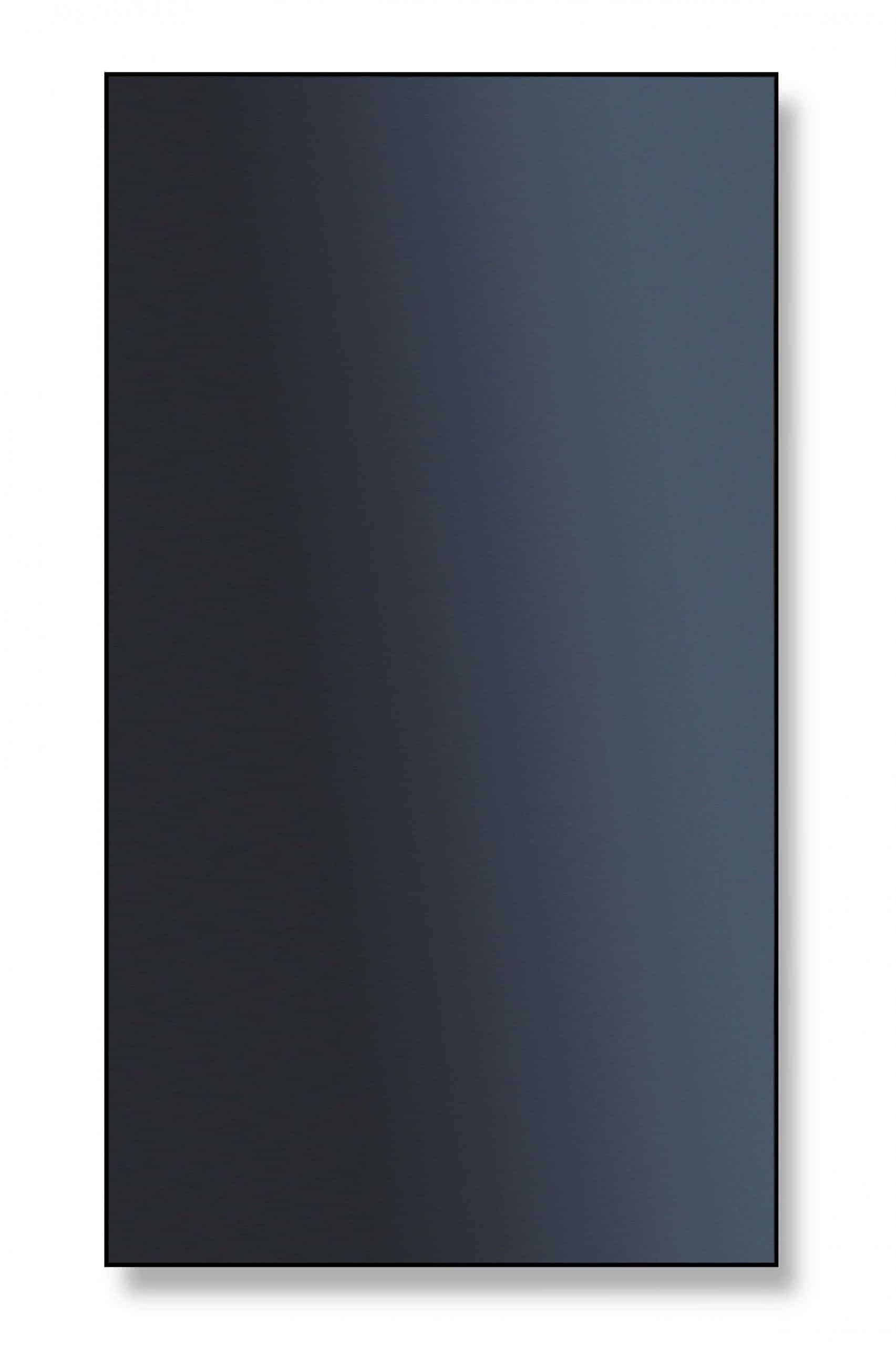

|Supported Orientation||horizontal, vertical, face up|
|Native Resolution||1920 x 1080|
|Supported Resolutions (Display port + HDMI)||1024 x 768, 1080i, 1080p, 1280 x 1024, 1280 x 768, 1360 x 768, 1600 x 1200, 1920 x 1080, 3840 x 2160 (24/30 Hz), 480p (60 Hz), 576p (50 Hz), 640 x 480, 720p (50/60 Hz), 800 x 600|
|Supported Resolutions (HDMI)||1360 x 768, 3840 x 2160 (25 Hz), 4096 x 2160 (24 Hz), 480i (60 Hz), 576i (50 Hz)|

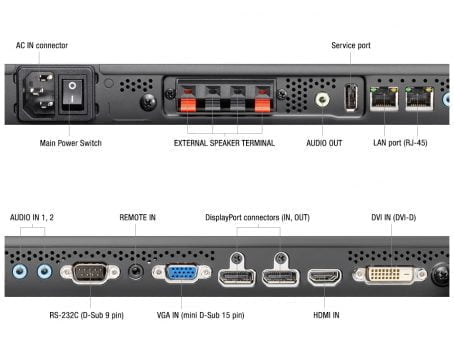

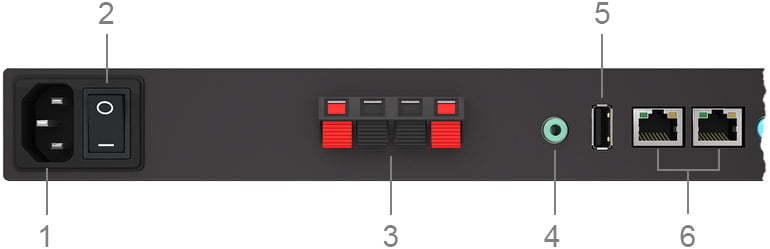

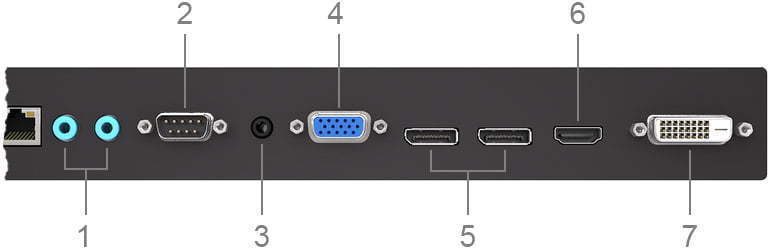

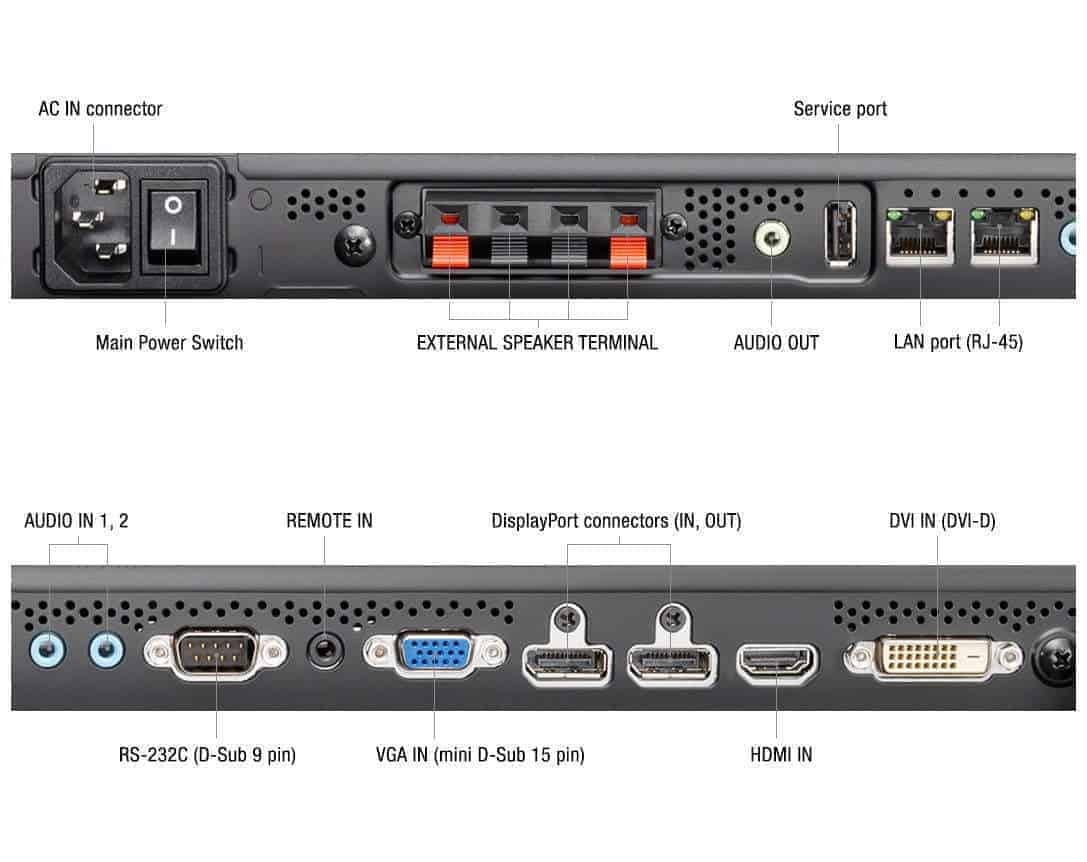

|Digital||1 x DisplayPort (with HDCP), 1 x DVI-D (with HDCP), 1 x HDMI 1.3 (with HDCP)|
|Video||1 x DisplayPort (ar HDCP), 1 x DVI-D (ar HDCP), 1 x HDMI 1.3 (ar HDCP)|
|Audio||1 x 3,5 mm|
|Microphone||2 x 3,5 mm|
|Control||IR remote control, RS-232C (9-pin D-sub), LAN arSNMP|
|Ambient Light Sensor||Integrated, triggered actions programmable|
|Human Sensor||Optional, external, 4-5m range, triggered actions programmable|
|Temperature Sensor||Integrated, 3 sensors, triggered actions programmable|
|NFC Sensor||Integrated, 2cm range, free NEC Android App required|
|Power Consumption [W]||275, 204 Eco|
|Operating Temperature [°C]||0 to +40|
|Operating Humidity [%]||20 to 80|
|Dimensions (W x H x D) [mm]||1,213 x 684 x 95|
|Bezel Width [mm]||1.2 bottom/right, 2.3 top/left|
|VESA mounts [mm]||400 x 400|
|Ingress protection||IP 40 (front), IP 20 (rear)|
|Shipping Content||DisplayPort vads, Free LAN control software (download), signāla vads LAN vads, strāvas vads|
Video walls from NEC: get the WOW factor!
NEC’s video wall solutions ensure the big impressions you desire. Effortless readability with precise colour reproduction and high contrast ratios will catch attention. An advanced set of intelligent features make the displays easy to install and operate, and drastically reduced maintenance times are supported.
Create and display your dynamic images with uniform brightness and colour rendition. With the ultra slim bezels and exact synchronization across the individual screens amazing results are achieved in high bright conditions and in continuous operation. NEC stands for quality and service. Excellent reliability leads to minimum downtimes and with an integrated remote management system maintenance is reduced significantly in both cost and effort. To ensure long term peace of mind, NEC offers a 5 year warranty extension. You care about your business – we care about the rest!
MultiSync ® X555UNS is the perfect choice for flexible video walls in corporate applications, retail environments, quick service restaurants and all other public spaces. Get the attention you desire! With the WOW factor from NEC!
- Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
- Native UHD Daisy Chaining through DisplayPort 1.2 Multistreaming – enables the user to create UHD videowalls with either a single UHD image or 4 different Full HD sources.
- Auto Tile Matrix – for a complete auto set up for videowalls. Save time and cost by configuring one display in order to complete the set up for the entire wall.
- Frame Comp – supports a seamless appearance and shows the content without any interruption, creating one stunning image by synchronising the content across the wall.
- Reliable colour reproduction – due to 10-bit colour performance, extreme viewing angles and hardware calibratable LUT, viewers benefit from consistently accurate image rendering.
- Unique NEC heat management – enables the user to monitor and control the heat inside the display with user controllable fans. Heat management is crucial for larger walls and mission critical installations to secure reliability and longevity.
- DICOM support – for medical applications.
- Free Download of Multi-Display Management Software – with NaViSet Administrator 2 you can manage all your connected display devices from a centralised location.
