Preces kods: 6970240721291

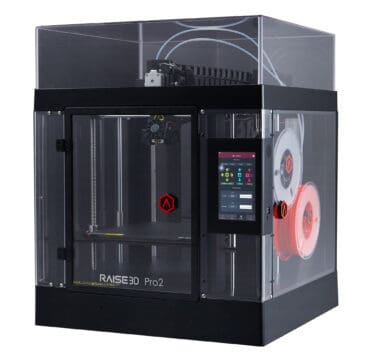

3D printeris Raise3D Pro2


(Atzīmējiet 2-4 preces no kategorijas)
Ražotājs Raise3D

Tehniskie parametri

Tehnoloģija FFF
drukāšanas izmērs [mm] 305*305*300
Drukas precizitāte ±0.01mm
Slāņa biezums [mm] 0.01-0.25mm
Sprauslas diametrs [mm] 2 x 0.4mm
sprauslas temperatūra [C°] 300
Atbalstītie materiāli PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Enforced / Carbon Fiber Enforces / Metal Particles Filled / Wood Filled
Materiāla diametrs [mm] 1.75
Virsmas temperatūra [C°] 110
Savienojumi USB, LAN, WiFi
Displejs ir, 7", skārienjūtīgs
Iebūvēta videokamera ir
jauda [W] 600
Korpuss Slēgts
Izmērs (W x H x D) [mm] 590x620x760
Svars [kg] 50.2


Realize impressive results with the Raise3D Pro2 Dual Extruder 3D printer. Raise3D stands for the production of high quality, reliable and affordable manufacturing machines. This 3D printer enables you to produce small series and prototypes. Join Additive Manufacturing now.

Main product features:

  • Precise control of the building platform via touch screen
  • Large building chamber: 305 x 305 x 300 mm
  • Integrated filament sensor & camera
  • Innovative air supply for clean air

Raise3D Pro2 – High quality & reliable Dual Extruder 3D Printer

Raise3D stands for the production of high quality, reliable and affordable 3D printers. Join Additive Manufacturing at a good price now. Realize impressive results fast with this Raise3D Pro2 Dual Extruder 3D printer. Manufacture with this good-value 3D printer small series and prototypes. Buy this great 3D printer for fast and cost-effectively generative production.

The most important new features of the Raise3D Pro2:

  • Precise control of the building platform
  • Optimized extruder head for an easy extrusion
  • Integrated filament sensor recognizes filament status
  • High-temperature silicone printing bed for good adhesion on build platform
  • Aluminum magnetic bed with improved 4 + 9 point closure system
  • Environmentally friendly and safe thanks to air filter
  • Improved factory calibration enables you to start fast with 3D printing
  • Integrated camera allows to monitor manufacturing results from remote
  • Optimized nozzle for optimal extrusion
  • Hot-end upgrade
  • Very extensive accessories
  • Software controllable active cooling fan for best possible cooling
  • Software controllable active cooling fan for best possible cooling
  • High quality optical end stops
  • Large building chamber: 305 x 305 x 300 mm

3D printing is cumbersome, complicated and gives bad results? – Not with the Raise3D

Let the Raise3D Pro2 fascinate you. 3D printing is cumbersome, complicated and gives bad results? That was yesterday. Yet, the Raise3D Pro2 convinces with many intelligent functions. There are very few 3D printers on the market that can integrate all this functionality into one device. The vast majority of these devices cost a multiple of the Raise3D Pro2.

Intuitive 7-inch color touch display

Control this dual-extruder 3D printer through its 7-inch color touch display. Are you able to operate a smartphone? If so, you can use the intuitive interface of your Raise3D’s. This will keep your 3D printing under control. Let your masterpieces become real with the Raise 3D Pro2.

Heated building platform and enclosed building chamber

Thanks to its generous building volume, you are able to manufacture very large components and prototypes. 3D print parts that reach a length of 305 x 305 x 300 mm. Furthermore, the building chamber of this 3D printer is closed. This allows you to process more sophisticated materials such as ABS, HIPS, PET-G, PLA +, PP and ASA. This is made possible by a heated building platform (up to 110 ° C), the completely enclosed building chamber. Heat the heated extruder up to 300 ° C. Transform your creative ideas into new real objects.

Open filaments system – Decide what filament you want to 3D print with

Use your favorite material. The Raise3D Pro2 is an open platform and can be processed with a variety of available filaments. The filaments only requirement of the filament is to have a 1.75 mm diameter. You decide which material you want to use!

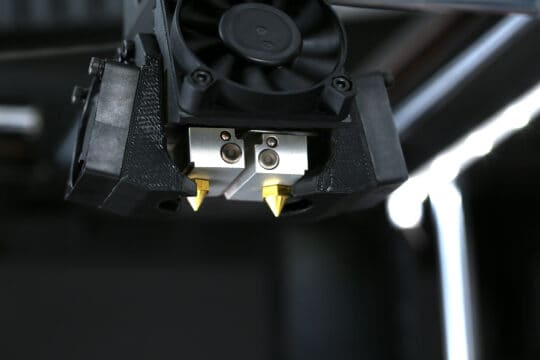

Optimized double extruder

  • Precise control of the building platform
  • Optimized extruder head with improved torque performance and dual gear drive
  • Optical filament sensor – This will show you the filament status and immediately stop the 3D printer when the filament is exhausted. After refilling you can continue working

Dual extruders for different filaments, materials – 3D print complex components

Make parts with the dual extruder parts from two different filaments, materials and support materials . If you use PVA or HIPS as the second filament, you can realize very complex components with overhangs. After finished 3D printing , you can simply dissolve the support filament and get great results.

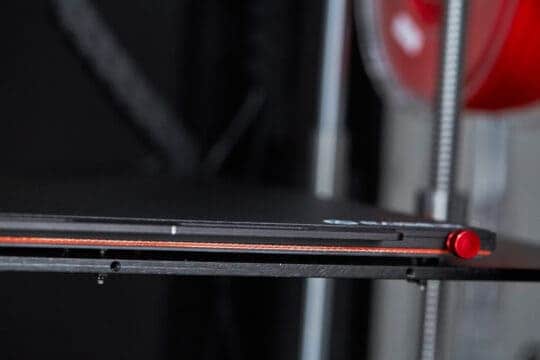

New 3D printing bed for better adhesion

Now Raise3D Pro2 works with a new silicone heating bed. This increases  adhesion of your components on the platform. The base of this forms a magnetic aluminum bed. This is equipped with an improved 4 + 9 points lock system.

Air filter for improved air quality reduces fumes and smells

Do you want to use this 3D printer without disturbing fumes and smells? The Raise3D Pro2 allows you to keep your air clean – with its built-in air filter.

Resume Function after power failure 3D printer

Power failure – And now? With this 3D printer you won’t be in trouble. After the power has returned, simply resume your 3D printing using the RESUME function. The built-in 1000 mA battery stores the 3D printing progress. Then, the 3D printing can easily be continued. This function will save you filament, costs and time that would be caused by interruptions.

Fast and precise production with Raise 3D Pro2

The Raise3D Pro2 allows you to 3D print at high speed and produce at a very high level. In the Z direction, the remarkable resolution of a minimum of 0.01 mm layer thickness can be achieved. 3D print fine structures and very smooth surfaces. When you work with such a high resolution we recommend you only to manufacture small parts, since the construction time increases sharply.

Buy the Raise3D Pro2 to get a professional, reliable and affordable dual extruder 3D printer for Additive Manufacturing.

Technical Details
Usable Nozzle Type Raise3D Pro2
Usable Filament Diameter 1.75 mm
Max Nozzle Temperature 300 ºC
Open Filament System Yes
Extruder Type direct drive
Build Area 305 mm x 305 mm x 300 mm
Dual Build Area 305 mm x 280 mm x 300 mm
Build Plate Temp Max 110 ºC
Build Plate Surface BuildTak
Build Plate Material Aluminum plate
Build Plate Attachment magnetic /screws
Build Plate Leveling System Pre-calibrated – manual Leveling
Build Chamber During Process Open or Closed
Filament Chamber Closed Yes
Extruder Number Of 2
Extruder Construction Type Dual Dual-head with electronic lifting system
Installation Space / Requirements
Total Mass Overall Dimensions 590 mm x 620 mm x 760 mm
Total Weight 50.2 kg
Ambient Operating Temperature 15°C – 30°C
Max Power Consumption 600 W
Voltage AC: 100 V, 3,3 A / 230 V (50/60 Hz)
Hepa Filter Yes
Filament Runout Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes
Camera Yes
Memory Internal Yes, 8 Gbyte
USB Port Yes
Ethernet Port Yes
Cloud Control Yes
Layer Height 0.01 – mm
Shipping Box 690 mm x 730 mm x 1060 mm
Shipping Weight 70.5 kg
