Preces kods: 6970240723622

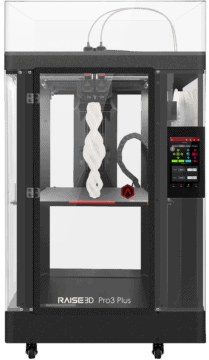

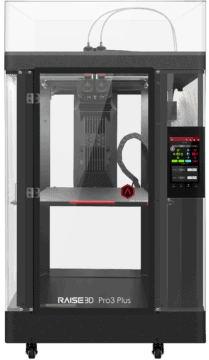

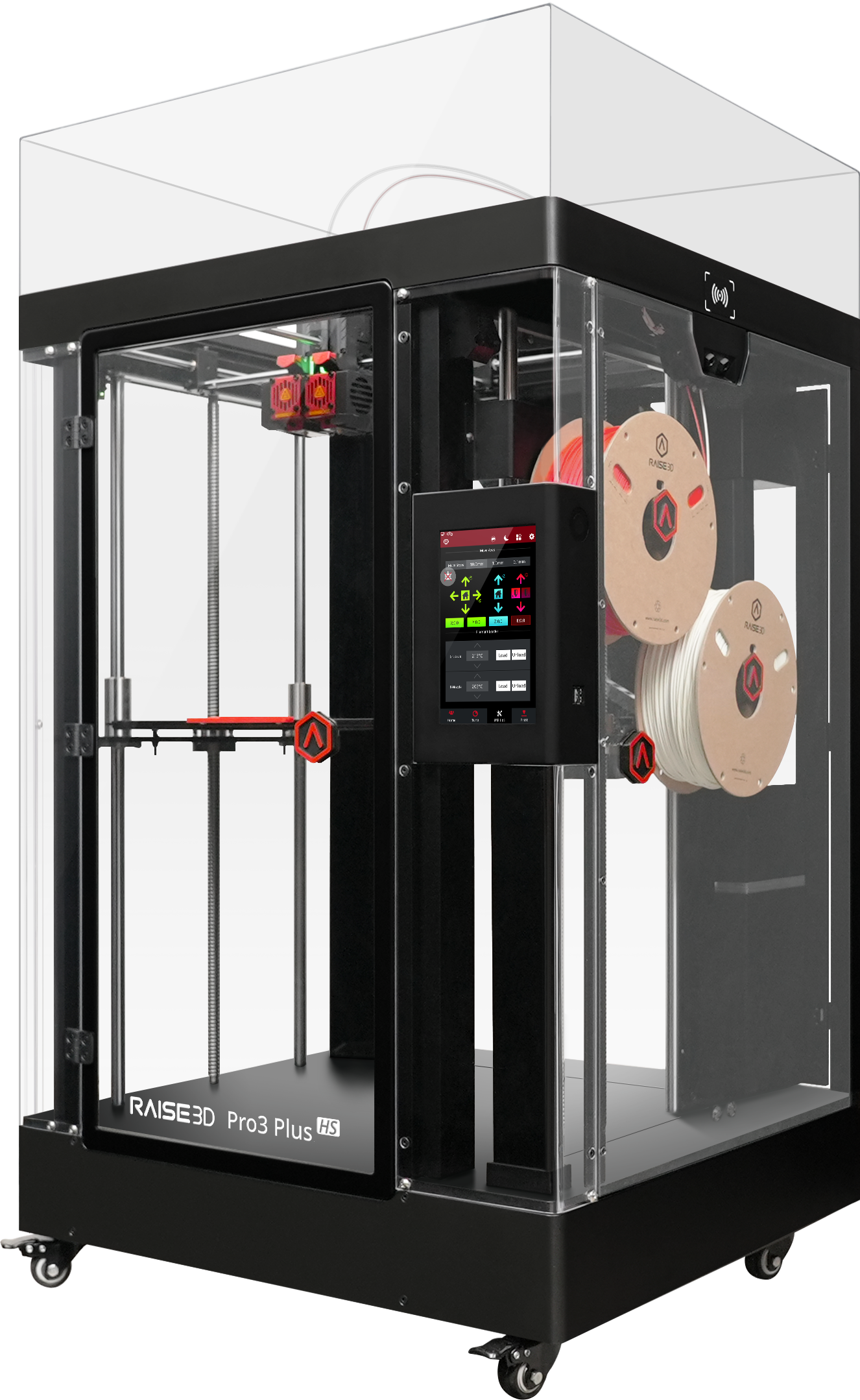

3D printeris Raise3D Pro3 Plus

€8129.00 (Cena ar PVN)

(Atzīmējiet 2-4 preces no kategorijas)
Ražotājs Raise3D

Tehniskie parametri

Tehnoloģija FFF
drukāšanas izmērs [mm] 300*300*605
Drukas precizitāte ±0.01mm
Slāņa biezums [mm] 0.01-0.25mm
Sprauslas diametrs [mm] 2 x 0.4mm
sprauslas temperatūra [C°] 300
Atbalstītie materiāli PLA / ABS / HIPS / PC / TPU / TPE / NYLON / PETG / ASA / PP / PVA / Glass Fiber Enforced / Carbon Fiber Enforces / Metal Particles Filled / Wood Filled
Materiāla diametrs [mm] 1.75
Virsmas temperatūra [C°] 120
Savienojumi USB, LAN, WiFi
Displejs ir, 7", skārienjūtīgs
Iebūvēta videokamera ir
jauda [W] 600
Korpuss Slēgts
Izmērs (W x H x D) [mm] 620x626x1105
Svars [kg] 61.2

Garantija

One of the most popular professional printers in the world has a new version of their printer!
Forged from the Pro2 Series, Raise3D’s newly launched Pro3 Series 3D printers meet the needs of both production and multi-sized rapid prototyping, with high precision and round-the-clock stable operation, fulfilling the requirements of large-scale production and multi-sized rapid prototyping. A high-quality printer design that includes enhanced features and a smart assistant system known as EVE, all of which make the Pro3 Series an excellent option for professional 3D printing.

Highlights Raise3D Pro3 Plus:

  • Large build surface of 300mm x 300mm x 605mm
  • Independent modular extruder with detachable hot-end
  • Auto bed leveling
  • Flexible build plate
  • Air flow manager and HEPA air filter
  • EVE – Smart assistant helps locate and resolve issues
  • Hot- end temperatures up to 300 ºC

Raise3D Pro3 – Professional 3D Printer for companies & demanding end users

The Raise Raise3D Pro3 is a significant upgrade from the Raise3D Pro2. The manufacturer put many years of experience in 3D printing industry in this advanced FFF/FDM 3D printer. Moreover, the Pro3 is built to meet the demand of sophisticated end users and companies. Including many smart features, it has an unparalleled productivity and comes along with an easy-to-use interface.

More Features

  • One-Touch Sleep Mode
  • Filament Run-out Sensor
  • Automatic Detection
  • Fast Nozzle Switching
  • Z-axis Rod Stiffness Increased
  • Power Loss Recovery

Capable of Printing Filaments Up to 300°

PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill

Printing Management

RaiseCloud: Remote management cloud platform Raise3D Printers: FFF 3D printers with wide applications

Data Conversion

ideaMaker: Powerful 3D slicer software

Data Preparation

Open Filament Program: Third-party slicing profile database Raise3D Academy
All-in-one 3D printing knowledge base ideaMaker Library: User community and slicing profile sharing platform

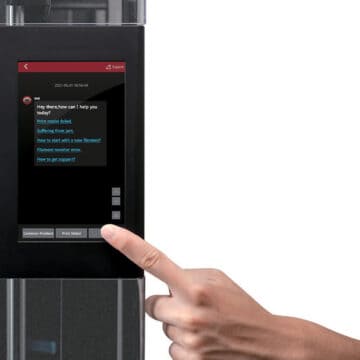

EVE Smart Assistant

The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job.
It has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time.
It also helps reduce maintenance time and communication costs for an efficient maintenance process.

Lightweight Cable with Digital Temperature Measurement

The Pro3 Series replaces the drag chain cable with a lightweight cable, to reduce the weight of the extruder and keep the center of gravity in the middle during printing for more stable print quality. The Pro3 Series also uses digital temperature measurement, for accurate and anti-jamming temperature reading.

Air Flow Manager & HEPA Air Filter

The Air Flow Manager of the Pro3 Series improves heat dissipation and air circulation, and creates a stable environment inside the print chamber.
Equipped with a HEPA air filter, Air Flow Manager can also filter and clean the air inside the chamber.
The Pro3 Series uses HEPA air filtration to clean the air of any particles (including nano-particles) released during the 3D printing process. The HEPA air operates silently, quietly working in the background of any work area.

Flexible Build Plate

The flexible build plate can be bent to easily remove 3D printed parts while minimizing potential damage to the final print. The Pro3 Series is also compatible with metal build plate, and high temperature build plate made of 100% pure borosilicate glass.

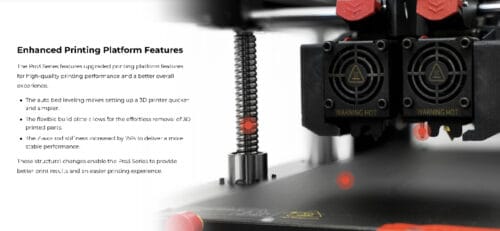

Auto Bed Leveling

Auto bed leveling improves bed adhesion and allows the extruder to adjust to even the most minor of surface contour changes for better final print quality.

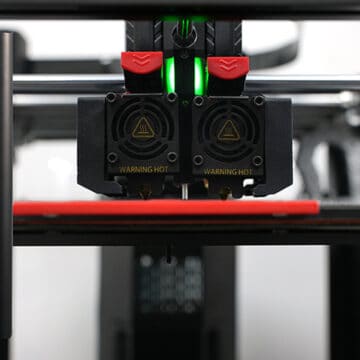

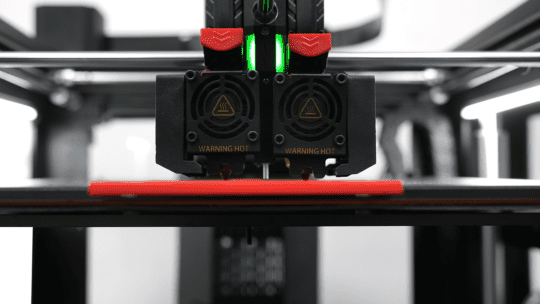

Independent Modular Extruder with Detachable Hot End

The Pro3 Series is equipped with an independent modular extruder with a dual extrusion structure. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow convenient disassembly and replacement of components. The hot end of the Pro3 Series is easy to remove, facilitating the replacement and maintenance of the hot end. Users can also easily take off the front cover of the extruder to accurately locate common printing impediments such as filament jams.

Raise3D-Pro3-Plus - 8405_FDM_Printer_Raise3D__002

Technical Details
Usable Nozzle Type Raise3D Pro2
Usable Filament Diameter 1.75 mm
Max Nozzle Temperature 300 ºC
Open Filament System Yes
Extruder Type direct drive
Build Area 300 mm x 300 mm x 605 mm
Build Plate Temp Max 120 ºC
Build Plate Surface BuildTak
Build Plate Material Flexible Steel Plate
Build Plate Attachment magnetic
Build Plate Leveling System Mesh-leveling with Flatness Detection
Build Chamber During Process Open or Closed
Filament Chamber Closed Yes
Extruder Number Of 2
Extruder Construction Type Dual Dual-head with electronic lifting system
Installation Space / Requirements
Total Mass Overall Dimensions 620 mm x 626 mm x 1105 mm
Total Weight 61.15 kg
Ambient Operating Temperature 15°C – 30°C
Max Power Consumption 600 W
Voltage AC: 100 V – 240 V, 3,3 A (50/60 Hz)
DC: 24 V
Equipment
Hepa Filter Yes
Door Sensor Yes
Filament Runout Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes
Camera Yes
Memory Internal Yes, 8 Gbyte
Connection
USB Port Yes
Ethernet Port Yes
WLAN Yes
Cloud Control Yes
Accuracy
Layer Height 0.01 – 0.25 mm
Shipping
Shipping Weight 95.4 kg

Video

Raise3D Pro3 series
